Limestone Crusher

Limestone can be directly processed into stone and fired into the quicklime. So it has a wide range of applications, such as building materials, metallurgy, chemical industry, and highway.

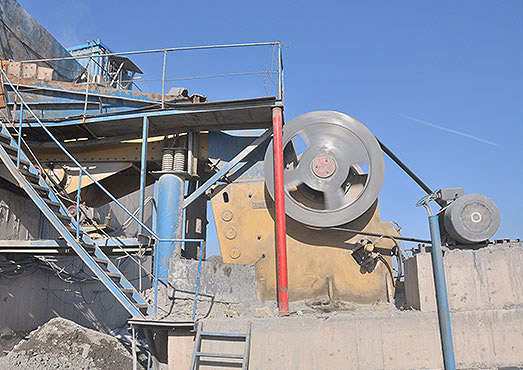

Jaw Crusher

☆The basic principle of compound pendulum
☆Gasket discharging adjusting device
☆Centralized lubrication system

CI5X Series Impact Crusher

☆High precision heavy rotor with large inertia
☆Multifunctional hydraulic operating system
☆Optimized involute crushing cavity type

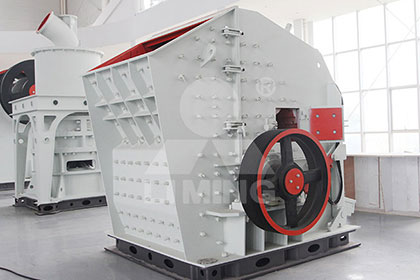

European Type Impact Crusher

☆Advanced Technology and optimized design
☆Unique structure and stable running
☆Semi automation makes operation time-saving

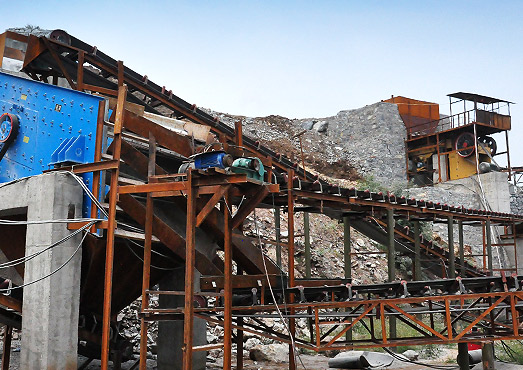

The processing is easy to understand. After being screened by the steel grid of the vibrating feeder, the small size materials will be dropped to the belt conveyor. Then the materials with qualified sizes will be evenly sent into the Jaw Crusher for the primary crushing. After being crushed by Jaw Crusher, the finished products will be transferred to the storage yard under which there is a hopper installed by belt conveyor, after being dropped to vibrating feeder from the hopper, the outputs will be sent into impact crusher via belt conveyor for secondary crushing. After secondary crushing, those materials were sent to circular vibrating screen for screening out the required products, and the unqualified products are transferred to impact crusher for re-crushing.

Final products size: 0-40mm
Capacity: 550-650tph
Equipment: Vibrating Feeder GZD1500×6000, PE Series Jaw Crusher PE1200×1500, European Type Impact Crusher PFW1318Ⅲ, Vibrating Screen 4YZS2460
