Lead ore Crusher

Lead, zinc, silver and copper can be extracted from lead ores. Lead takes advantages of high density, good corrosion resistance, low melting point, soft and easy processing. Lead can be used in acid industry, accumulator, cable sheathing and anti-corrosion lining of metallurgical equipment.

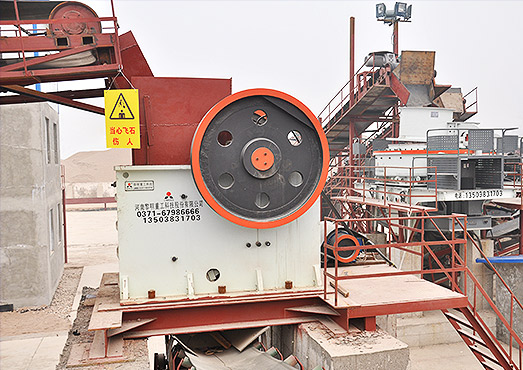

Jaw Crusher

☆Streamlined monolithic construction
☆It can meet environmental regulation
☆The energy can be saved by 15%-30%

HST Hydraulic Cone crusher

☆The operational control is intelligent
☆Simple structure and long service life
☆High efficiency and low costs

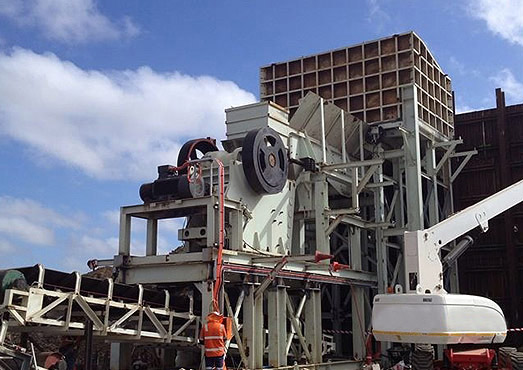

Mobile crushing plant

☆Bar pre-screening model
☆It can start to work in a hurry
☆It can park flexibly

As a kind of hard material, lead should go through coarse crushing from jaw crusher, medium crushing from cone crusher, shaping from sand making machine. When transporting big lead ores, vibrating feeder will screen waste out at first, and then belt conveyor will send lead ores to jaw crusher for primary crushing. After this ores will be crushed secondarily in cone crusher. On the vibrating screen, required ores will be screened out and sent to sand making machine for shaping, but unqualified ores should be reprocessed in secondary crushing. Finally, final products will be got by screening.

Final products size: 0-40mm
Capacity: 150-200tph
Equipment: Vibrating Feeder GZD1100×4200, Vibrating Feeder GZG80-4, PE Series Jaw Crusher PE750×1060, Cone Crusher CSB160 (C), Sand Making Machine VSI9526, Vibrating Screen 2YZS1860, Vibrating Screen 3YZS2160
