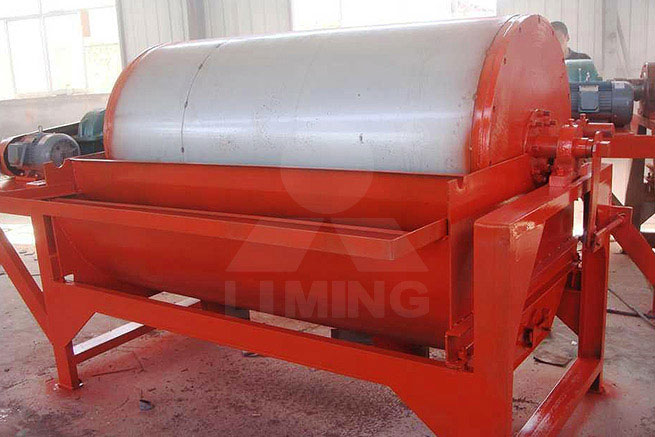

Magnetic Separator
Magnetic Separator

Input size:

Production Capacity: 15-410T/h

Magnetic separator is used for sorting magnetic minerals or removing non-magnetic minerals mixed in the magnetic minerals.The material is evenly given to the magnetic field region of upper the rotating roller, magnetic substance is adsorbed on the surface of the roller and rotated together with the roller.

Email: infosh@limingco-group.com

Magnetic Separator

Fea tures

    Magnetic separators have many features compact structure, no cooling system, no power excitation system, rectifying the belt automatically, simple structure, large capacity, easy to operate, easy to maintain, etc.

Over view

Magnetic separator is used for sorting magnetic minerals or removing non-magnetic minerals mixed in the magnetic minerals.

Working Principle

The material is evenly given to the magnetic field region of upper the rotating roller, magnetic substance is adsorbed on the surface of the roller and rotated together with the roller. As the non-magnetic particles and magnetic particles are suffered different magnetic force in a magnetic field,the magnetic particles are adsorbed on the surface of the roller by the magnetic field,and removed to the non-magnetic region.Non-magnetic and weakly magnetic particles are suffered by their different magnetic force.The outstripped track are different.

Spec ifications

CT Dry Magnetic Drum Separator Specification:

Model Roller size (Dia*length)(mm) Magnetic Field Strength(mT) Handle size (mm) Rotation speed of the drum r/min Processing capacity (t/h) Motor powder (kw) Weight (t)
CT718 700×1800 250-450 ≤20 30-50 75 3 1.8
CT722 700×2200 100 3 2
CT724 700×2400 125 4 2.2
CT726 700×2600 135 4 2.4
CT818 800×1800 100 4 2.1
CT822 800×2200 140 4 2.4
CT824 800×2400 180 5.5 2.6
CT826

800×2600

 220 5.5 2.8
CT918 900×1800 150 4 2.4
CT922 900×2200 200 4 2.8
CT924 900×2400 250 5.5 3.1
CT926 900×2600 300 5.5 3.3
CT1015 970×1500 200 5.5 2.5
CT1018 970×1800 260 5.5 3
CT1022 970×2200 320 7.5 3.5
CT1024 970×2400 350 7.5 4
CT1026 970×2600 410 7.5 4.25

CTB Wet Magnetic Drum Separator Specification:

Model Drum data Magnetic induction intensity of drum surface mT Handling Capacity Motor power kw Rotation speed r/min Weight kg
Dia mm L mm t/h m³/h
CTB-618 600 1800 Depends on material character (60-550mT) 15-30 40-80 2.2 40 1340
CTB-718 750 1800 20-45 60-100 3 35 2100
CTB-918 900 1800 25-40 70-120 4 28 2900
CTB-1018 1050 1800 45-60 110-160 5.5 22 4000
CTB-1021 1050 2100 50-70 140-200 5.5 22 4500
CTB-1024 1050 2400 60-80 170-260 5.5 22 5000
CTB-1030 1050 3000 80-120 240-380 7.5 22 6300
CTB-1218 1200 1800 60-75 160-260 11 17 5000
CTB-1224 1200 2400 80-110 240-330 11 17 5900
CTB-1230 1200 3000 100-140 260-460 11 17 7200
CTB-1236 1200 3600 120-160 300-550 15 17 8200
CTB-1240 1200 4000 130-170 330-600 15 17 9200
CTB-1245 1200 4500 150-200 380-660 15 17 11000
CTB-1530 1500 3000 100-180 290-480 11 14 9900
CTB-1540 1500 4000 150-200 300-540 15 14 12000
CTB-1545 1500 4500 180-240 400-650 18.5 14 15000
CTB-1550 1500 5000 210-280 500-750 18.5 14 18000
CTB-1824 1800 2400 100-140 260-460 15 14 9100
CTB-1830 1800 3000 140-190 350-560 18.5 14 12300
CTB-1840 1800 4000 200-260 400-650 30 14 18500
CTB-1850 1800 5000 280-320 550-800 37 14 25000
