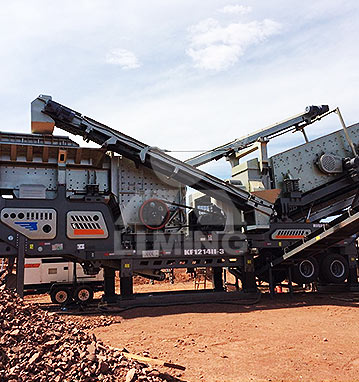

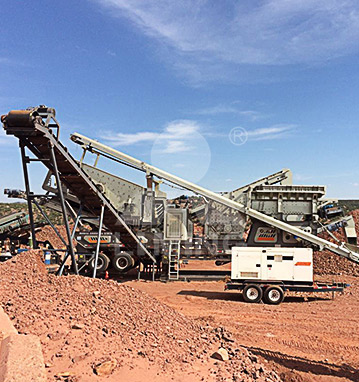

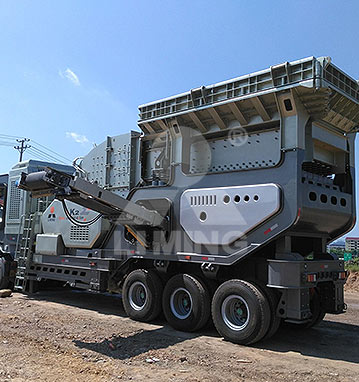

Three Combination Mobile Crusher
Three Combination Mobile Crusher

Input size: 0-500mm

Production Capacity: 110-170T/h

According to the requirements about products’ size and shape, Three-In-One Plant with different models equipped with 2 kinds of jaw crushers and 2 kinds of impact crushers respectively can be chose to satisfy customers’ different requirements. The maximum capacity can reach 180t/h.

Email: infosh@limingco-group.com

Three Combination Mobile Crusher

Fea tures

    • 1.Complete set integrated
    • 2.Flexible maneuverability
    • 3.Good adaptability and flexible configuration
    • 4.Reduce costs of delivering
    • 5.The project is effective and direct
    • 6.Optional switch for host to satisfy customer's need
    • 7.Quick opening process with flexible parking function

Over view

Three-In-One Plant suits for the alterable working environment, and it can meet customers’ requirements independently. The plant extend the concept of coarse crushing and fine crushing. Standing on the customers’ position. The plant removes obstacles such as field, surroundings, etc. unfavorable factors which influence crushing. According to different requirements of customers, optimized combination between crushing and screening with different models makes the plant flexible. Besides, Three-In-One Plant has some functions including transport and classifier, which try its best to meet customers’ individual needs.

According to the requirements about products’ size and shape, Three-In-One Plant with different models equipped with 2 kinds of jaw crushers and 2 kinds of impact crushers respectively can be chose to satisfy customers’ different requirements. The maximum capacity can reach 180t/h.

Working Principle

A body in common use of 4 kinds of models, crushing unit interchange system, feeding unit interchange and screening unit interchange reduce the investment and production costs. In a short time, vibrating feeders with different models are interchangeable in the same mobile crusher, the same example can be used in exchangeable system for impact crusher and jaw crusher, exchangeable system for different models of vibrating screen. Basing on cooperation between high-efficiency equipment, the perfect plant has advantages of wide usage and comprehensive functions, which can maximize the value of customers. In this module, the high-end configuration can be equipped with the whole-station belt conveyor.

Spec ifications

Model Feeding Equipment Crushing Equipment Max. preparedness capacity(t/h) Overall Dimension Weight (t)
Model Model Max. Feeding Size(mm) output
(t/h)
Transport dimension (need tear-down)
KF1214-3 3YZS1848 PF1214 300 90-180 110-210 16400×2810×4500(mm) 62
TSW0936
KF1214Ⅱ-3 3YZS1848 PFW1214Ⅱ 500 90-170 110-210 16400×2810×4500(mm) 62
TSW0936

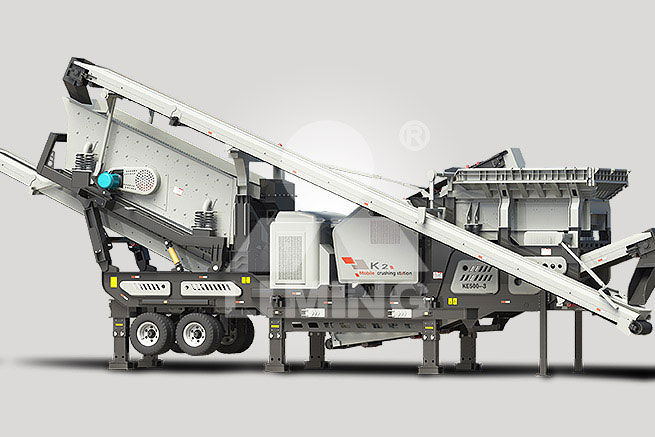

KE500-3 3YZS1548 PE500×750 425 50-100 60-130 16400×2760×4500(mm) 50
TSW0936
KE600-3 3YZS1848 PE600×900 500 60-130 80-170 16400×2760×4500(mm) 55
TSW0936
