Input size: Up to 30mm
Production Capacity: 4-13T/h

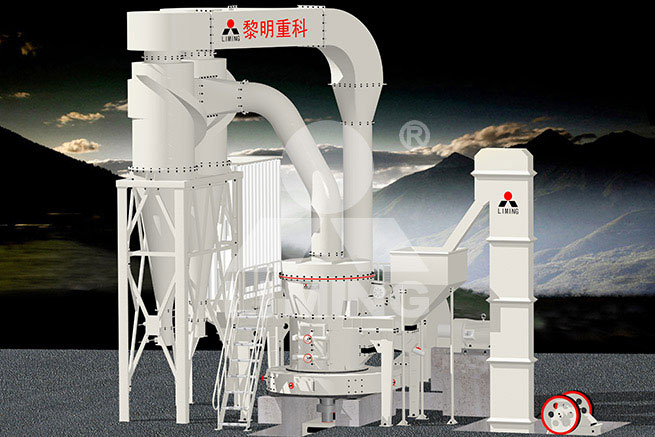

According to market research and customers’ demands, T130X Superfine Grinding Mill is produced on the basis of TGM super pressure trapezium mill. 1.The main frame and the base are completely soft-linked to avoid vibration so that the precision of the classifier is improved.The main motor of T130X Superfine Grinding Mill drives main axle and every layer rotating by the power of reducer. Dial drives numbers of rollers rolling and rotating in the ring by pintles.
Email: infosh@limingco-group.com
Fea tures
- 1.The main frame and the base are completely soft-linked to avoid vibration so that the precision of the classifier is improved.
- 2.The bases are made of anti-crack nodular cast iron which boasts high intensity, good anti-vibration ability and excellent impact resistance.
- 3.It is equipped the reducer that adopts the technology of German Flender, thus the machine’ stability is guaranteed.
- 4.The main frame and reducer are connected by pin coupling with elastic sleeve to enhance the reliable of the whole equipment.
- 5.The classifier adopts high density impeller which can improve the fineness and capacity. It also adopts frequency control of motor speed with the characteristic of high degree of accuracy.
- 6.Bypass powder collector is of low pressure loss and high efficiency.
- 7.The equipment employs the technology of Same Resistant Arrangement which decreases internal circulation and increases the efficiency.
- 8.The discharges of the collector and dust remover are in the same line which is convenient for packing. It also reduces the amount of work.
Over view

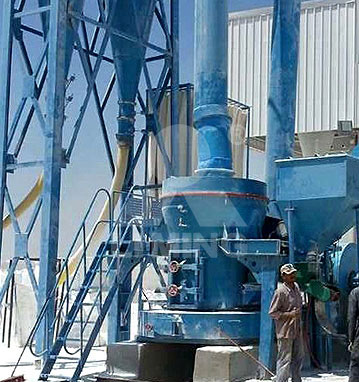

According to market research and customers’ demands, T130X Superfine Grinding Mill is produced on the basis of TGM super pressure trapezium mill. The plant is perfect equipment for milling non-metallic minerals, which used in metallurgy, construction, chemical industry, mining machinery for the non-inflammable non-explosive brittle materials with humidity below 6%.
Working Principle

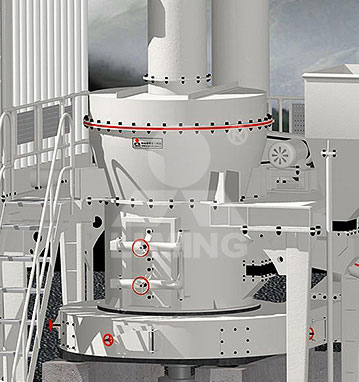

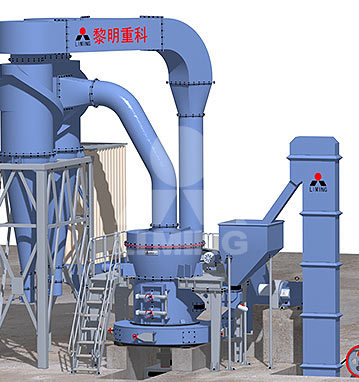

The main motor of T130X Superfine Grinding Mill drives main axle and every layer rotating by the power of reducer. Dial drives numbers of rollers rolling and rotating in the ring by pintles. Big materials are crushed into small particles by crusher. Then they are sent to store house by elevator. Vibrating feeder send the materials evenly to the middle of the upper dial. Under the function of the eccentricity, the materials fall into the ring to be pressed, crushed and milled into pieces by rollers. After the first crush, materials fall into the second and third layer of the grinder mill. The pumping of the high-pressure centrifugal blower put the outside air into the ultra-fine mill. The coarse powder will be brought into the classifier.
Spec ifications
1) Mainframe parameters
| Item | Unit | Specifications &Technical data |
| Quantity of roller | pcs | 4 |
| Diameter of roller x Height | mm | Ф410×210 |
| Diameter of ring x Height | mm | Ф1280×210 |
| Main shaft speed | rmp | 1480 |
| Max. feeding size | mm | <30 |
| Output size | mm | 0.074—0.038 |
| Capacity | t/h | 4－13 |
| Weight | t | 18 |
| Dimension | (L×W×H) (mm) | 7390×7000×8245 |
Note:
(1) capacity in the table is referred to calcite, under the condition of 80% passing though.
(2) Any change of parameters and shape shall be subject to the usage and maintenance manual instruction with delivery.
2) Power of equipped systems
| Name | Item | Unit | Specifications& Technical data |
| Motor for mainframe | Model | Y280S-4 | |
| Power | kw | 75 | |
| Rotating speed | rpm | 1480 | |
| Adjustable speed motor for classifier | Model | Y160L-4 | |
| Power | kw | 15 | |
| Rotating speed | rpm | 1460 | |
| Motor for elevator | Model | Y100L2-4 | |
| Power | kw | 3 | |
| Rotating speed | rpm | 1430 | |
| Motor for blower | Model | Y280M-4 | |
| Power | kw | 90 | |
| Rotating speed | rpm | 1480 | |
| Motor for Jaw Crusher | Jaw crusher Model | PE 250×400 | |
| Model | Y180L-6 | ||
| Power | kw | 15 | |
| Rotating speed | rpm | 970 | |
| Electromagnetic vibration feeder | Model | GZ3F | |
| Power | W | 200 |
