Input size: Up to 850mm
Production Capacity: 130-650T/h
TSW series vibrating feeder can be widely used in many industrial fields such as metallurgy, cool mining, benefication, construction, chemical industry, grinding, etc, 1.TSW series vibrating feeder adopts Y series motor and variable frequency.TSW vibrating feeder’s dual eccentric shaft exciter generates excitation force.
Email: infosh@limingco-group.com

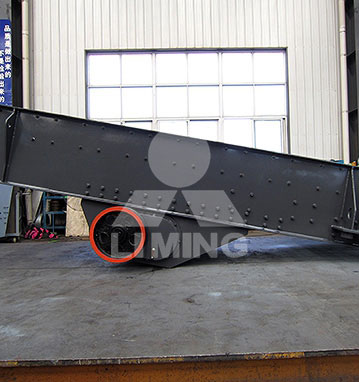

Fea tures
- 1.TSW series vibrating feeder adopts Y series motor and variable frequency inverter which can control the feeding capacity accurately.

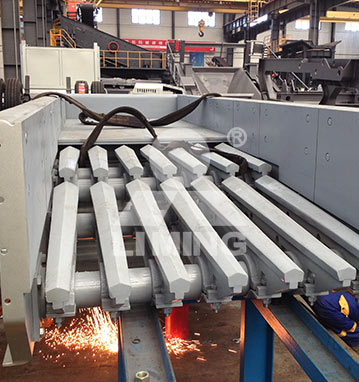

- 2.Adopt dual ladder and cast steel grid for stronger carrying capacity and long operation life.
- 3.Install low-angle structural in the bottom which can greatly improve the capacity and performance.
Over view
TSW series vibrating feeder can be widely used in many industrial fields such as metallurgy, cool mining, benefication, construction, chemical industry, grinding, etc, which can feed the crushing equipment evenly and continuously, and pre-screen the raw material at the beginning.
Working Principle

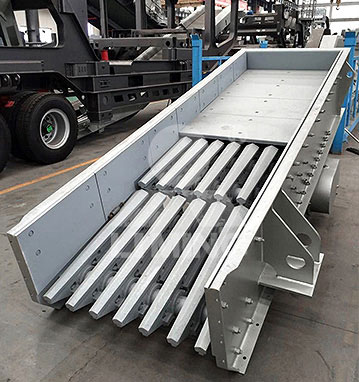

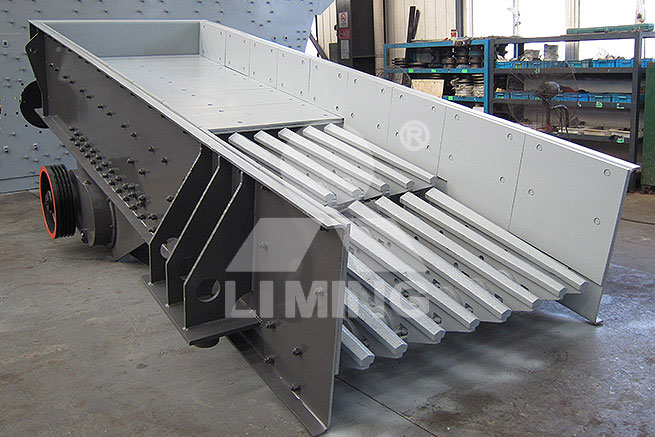

TSW vibrating feeder’s dual eccentric shaft exciter generates excitation force. A gear pair-connects the two eccentric shafts, enables the shafts rotate to opposite direction with same speed. Through motor driving, the excitation force generated constantly, the material slides and bounces ahead to crusher on the feeder groove. When material go through the feeder’s grid bars, the smaller material will fall down through the gap between grid bars and be sent to next crushing process. It enables the feeder to pre-screen material and fully ensures the crushing plant’s high crushing efficiency and capability.
Spec ifications
| Model | Maximum feed size (mm) | Capacity (t/h) | Rotation speed (rpm) | Groove size (mm) | Weight(t) | Dimension(mm) |
| TSW0936 | 500 | 130-280 | 750-900 | 960×3600 | 3.95 | 3680X2136 X1953 |
| TSW1139 | 600 | 150-350 | 750-900 | 1100×3900 | 4.32 | 3980X2276X1953 |
| TSW1345 | 700 | 250-450 | 750-900 | 1300×4500 | 4.97 | 4580×2570×1980 |
| TSW1548 | 850 | 350-650 | 750-900 | 1500×4800 | 6.57 | 4880X2832X2044 |
Form 1: TSW series vibrating feeder technical specification
| Model | V-belt | Motor | VFD (KW) |
Feeder driven wheel diameter (mm) |
Motor wheel diameter (mm) |
||
| Model | Qty. | Model | Power (KW) | ||||
| TSW0936 | SPC2800 | 3 | Y2-160L-4 | 15(20) | 15 | Φ420 | Φ244.6 |
| TSW1139 | SPC2800 | 3 | Y2-160L-4 | 15(20) | 15 | Φ420 | Φ244.6 |
| TSW1345 | SPC2800 | 3 | Y2-180L-4 | 22(30) | 22 | Φ420 | Φ244.6 |
| TSW1548 | SPC2800 | 4 | Y2-200L-4 | 30(40) | 30 | Φ530 | Φ290 |
Form 2: Accessory parameter
Note: The feeder's capacity may be influenced by many factors: material physical and mechanical properties, material shape, feeding method and etc.The feeder's capability is based on the stone with middle hardness whose bulk density is 1.6t/m³.
